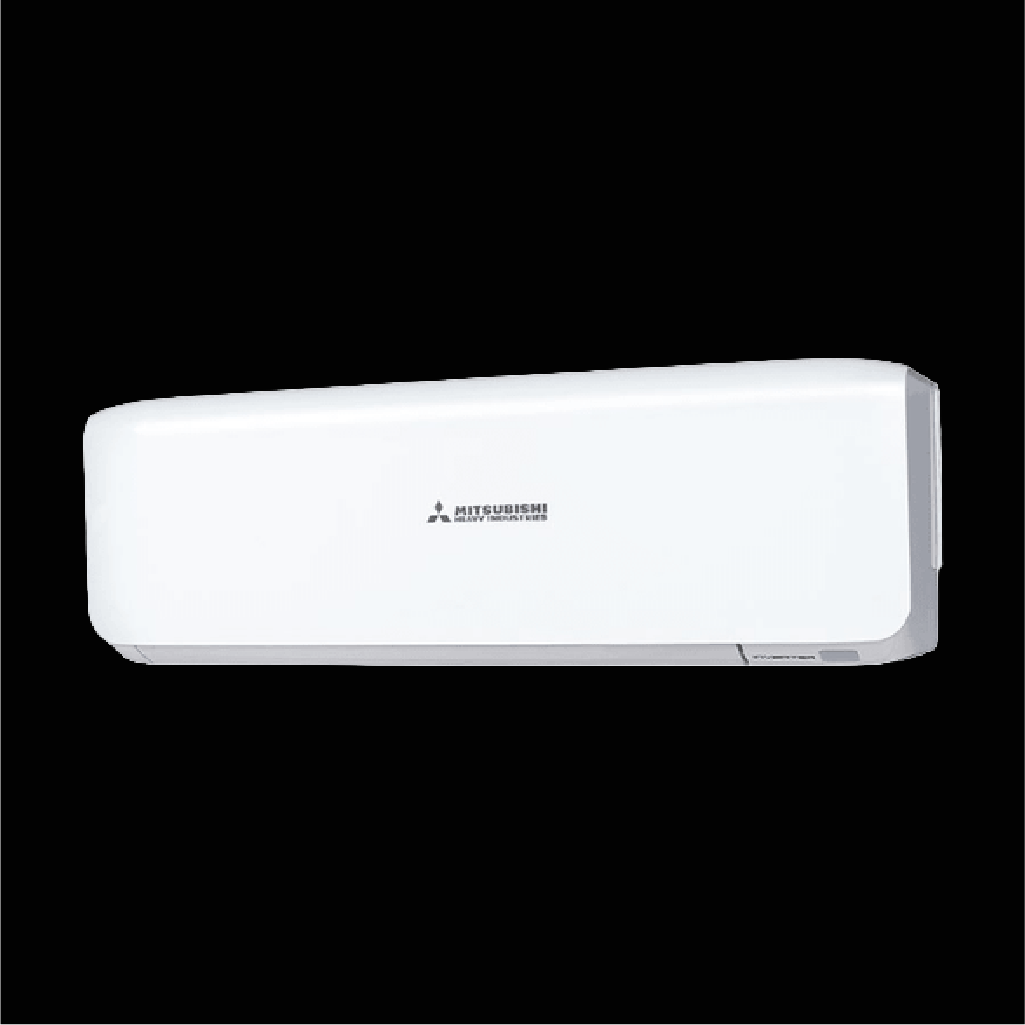

Mitsubishi Heavy Industries Avanti Plus 2.5kW Inverter Wall Split System Air Conditioner
Specifications
- Model Numbers Indoor: SRK25ZSXA-WF
- Model Numbers Outdoor: SRC25ZSXA-W
- Power Supply: 1 Phase 240V 50Hz
- Cooling Capacity: 2.5 (0.9–3.8)
- Heating Capacity: 3.2 (0.8–6.0)
- Heating Capacity (H2): 4.2
- Power Consumption (kW) Cooling: 0.44 (0.16–0.91)
- Power Consumption (kW) Heating: 0.59 (0.14–1.54)
- Max Power Consumption: 1.92 kW
- Running Current: Cooling: 2.3 A
- Running Current: Heating: 2.9 A
- Inrush / Max Current: 3.0 / 9.0 A
- EER: 5.68
- COP: 5.42
- Outdoor Sound Power: 57 dB(A)
- Indoor Sound Pressure: 39–33–25–19
- Outdoor Sound Pressure: 44
- Dimensions Indoor: 305 × 920 × 220 mm
- Dimensions Outdoor: 640 × 800(+71) × 290 mm
- Indoor Weight: 13 kg
- Outdoor Weight: 43 kg
- Airflow (l/s) Cooling: 203-167-112-83
- Airflow (l/s) Heating: 213-183-130-90
- Refrigerant: R32 – 1.2 kg
- Pre-charged Pipe Length: 15 m
- Pipe Size Liquid: Ø6.35 mm
- Pipe Size Gas: Ø9.52 mm
- Max Pipe Length: 25 m
- Max Height Difference: 15 m (O.U. above I.U.) / 15 m (O.U. below I.U.)
