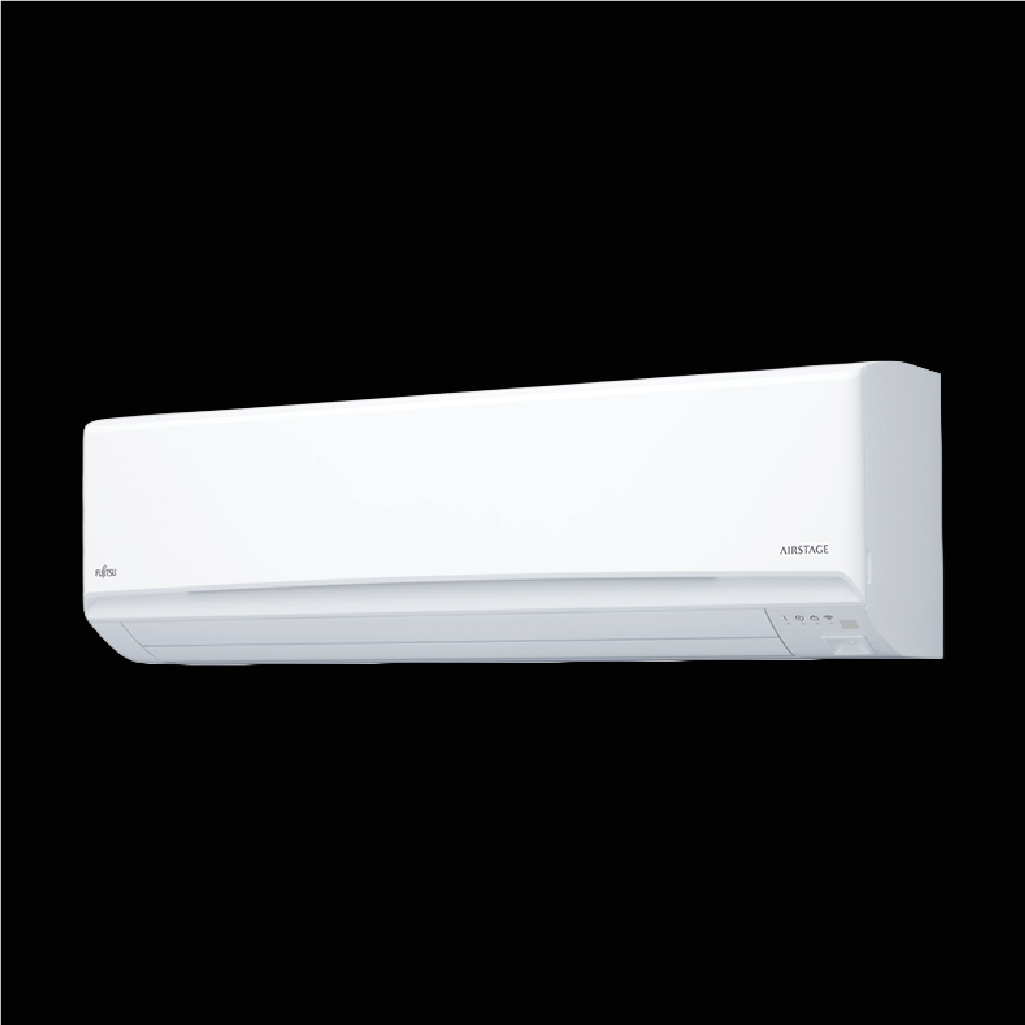

Fujitsu 9.5kW Inverter Wall Split System Air Conditioner
Specifications
- INDOOR UNIT: ASTH34KMTD
- OUTDOOR UNIT: AOTH34KMTD
- Operation Type: Reverse Cycle
- Power Source V/Ph/Hz: 230 / 1 / 50
- Cooling Capacity kW (Rated (Min – Max)): 9.50 (2.9 – 11.2)
- Heating Capacity kW (Rated (Min – Max)): 10.30 (2.9 – 11.7)
- Input Power Cooling kW (Rated (Min – Max)): 2.72 (0.66 – 4.2)
- Input Power Heating kW (Rated (Min – Max)): 3.04 (0.68 – 3.8)
- EER: 3.49
- COP: 3.39
- Cooling Residential kW (Hot / Average / Cold): 5.501 / 5.242 / 5.633
- Heating Residential kW (Hot / Average / Cold): 5.079 / 4.1 / 3.474
- Running Current amps (Cooling / Heating): 12 / 13.4
- Moisture Removal l/hr: 4.9
- Indoor Sound Pressure Cooling dBA (High / Quiet): 51 / 34
- Indoor Sound Pressure Heating dBA (High / Quiet): 51 / 33
- Outdoor Sound Pressure dBA (Cooling / Heating): 58 / 59
- Outdoor Sound Power dBA: 70
- Air Circulation (Indoor – High Fan) Cooling l/sec: 381
- Air Circulation (Indoor – High Fan) Heating l/sec: 372
- Indoor Unit Dimensions mm (Height x Width x Depth): 340 x 1150 x 280
- Indoor Unit Weight kg: 16.50
- Outdoor Unit Dimensions mm (Height x Width x Depth): 998 x 940 x 320
- Outdoor Unit Weight kg: 62.00
- Piping Connects mm Ø (Liquid / Gas): 9.52 / 15.88
- Pipe Length m (Max (Precharged)): 50 (25)
- Max Height Difference m: 30
- Operation Range Cooling °CDB (Min to Max): -10 to 50
- Operation Range Heating °CDB (Min to Max): -15 to 24
- Refrigerant Type: R32
