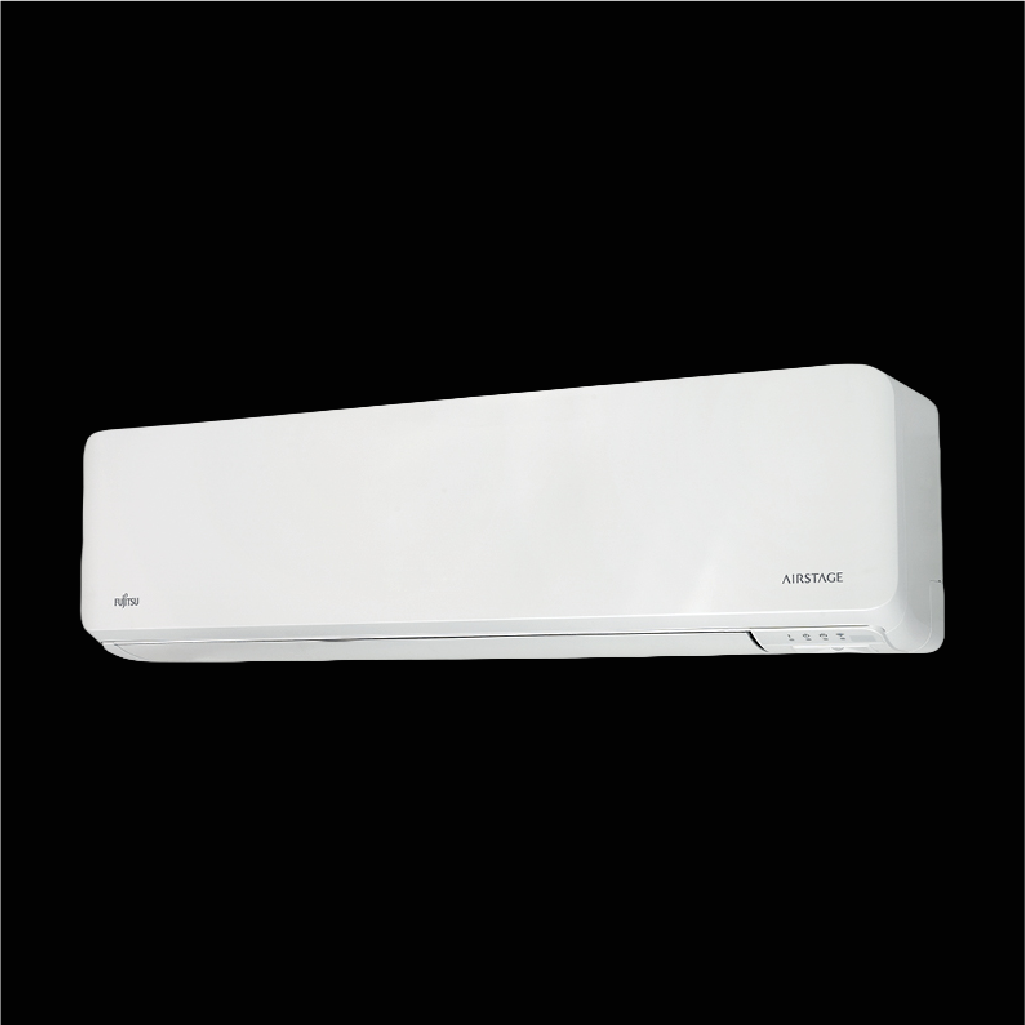

Fujitsu 5kW Inverter Wall Split System Air Conditioner
Specifications
- INDOOR UNIT: ASTH18KMTD
- OUTDOOR UNIT: AOTH18KMTD
- Operation Type: Reverse Cycle
- Power Source V/Ph/Hz: 230 / 1 / 50
- Cooling Capacity kW (Rated (Min – Max)): 5.00 (1 – 6.5)
- Heating Capacity kW (Rated (Min – Max)): 6.00 (1.05 – 8.7)
- Input Power Cooling kW (Rated (Min – Max)): 1.16 (0.24 – 1.68)
- Input Power Heating kW (Rated (Min – Max)): 1.28 (0.14 – 2.42)
- EER: 4.31
- COP: 4.69
- Cooling Residential kW (Hot / Average / Cold): 6.46 / 6.102 / 6.472
- Heating Residential kW (Hot / Average / Cold): 4.704 / 4.48 / 4.092
- Running Current amps (Cooling / Heating): 5.1 / 5.6
- Moisture Removal l/hr: 1.3
- Indoor Sound Pressure Cooling dBA (High / Quiet): 46 / 29
- Indoor Sound Pressure Heating dBA (High / Quiet): 46 / 29
- Outdoor Sound Pressure dBA (Cooling / Heating): 47 / 49
- Outdoor Sound Power dBA: 59
- Air Circulation (Indoor – High Fan) Cooling l/sec: 283
- Air Circulation (Indoor – High Fan) Heating l/sec: 283
- Indoor Unit Dimensions mm (Height x Width x Depth): 280 x 980 x 240
- Indoor Unit Weight kg: 12.50
- Outdoor Unit Dimensions mm (Height x Width x Depth): 716 x 820 x 315
- Outdoor Unit Weight kg: 42.00
- Piping Connects mm Ø (Liquid / Gas): 6.35 / 12.7
- Pipe Length m (Max (Precharged)): 30 (15)
- Max Height Difference m: 25
- Operation Range Cooling °CDB (Min to Max): -10 to 46
- Operation Range Heating °CDB (Min to Max): -15 to 24
- Refrigerant Type: R32
- Refrigerant Amount: 1,320
