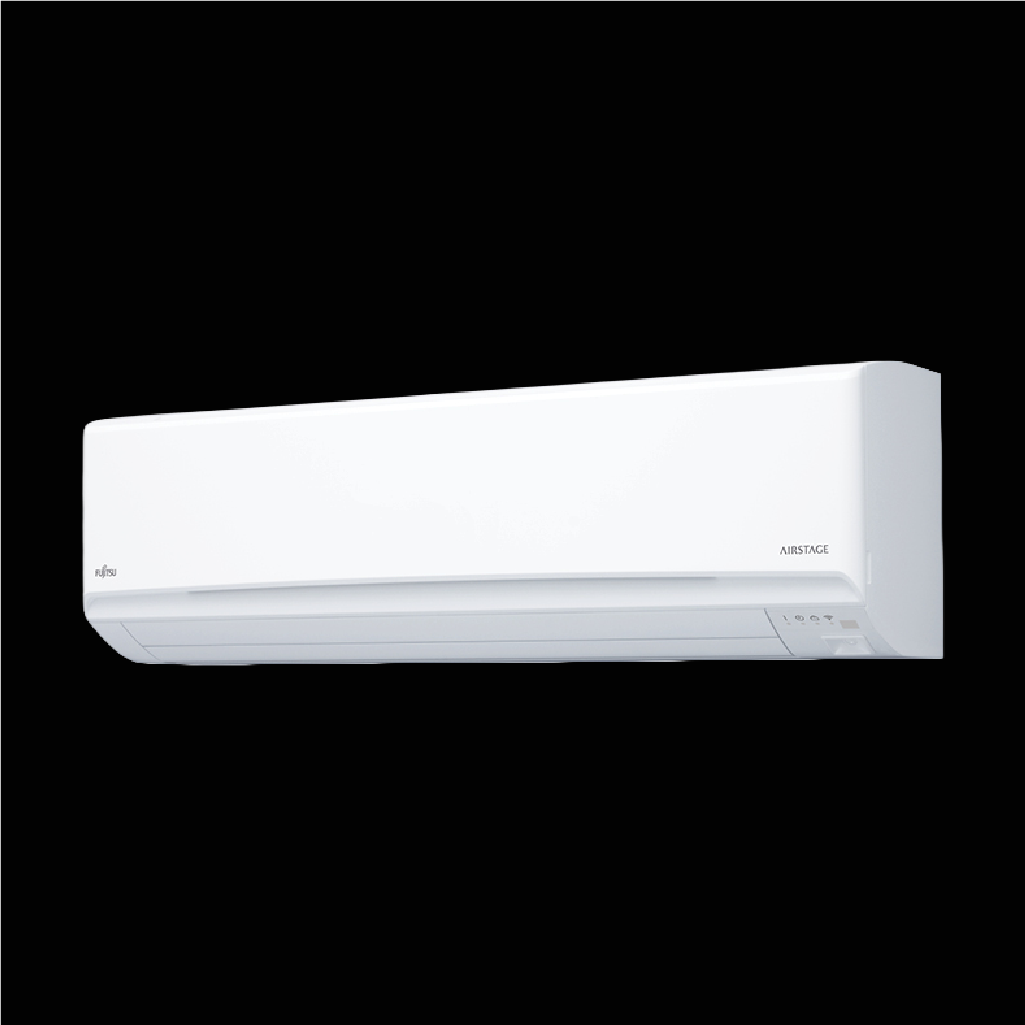

Fujitsu 8.5kW Inverter Wall Split System Air Conditioner
Specifications
- INDOOR UNIT: ASTH30KMTD
- OUTDOOR UNIT: AOTH03KMTD
- Operation Type: Reverse Cycle
- Power Source V/Ph/Hz: 230 / 1 / 50
- Cooling Capacity kW (Rated (Min – Max)): 8.50 (2.9 – 10.5)
- Heating Capacity kW (Rated (Min – Max)): 9.00 (2.7 – 11.2)
- Input Power Cooling kW (Rated (Min – Max)): 2.49 (0.6 – 4)
- Input Power Heating kW (Rated (Min – Max)): 2.39 (0.48 – 3.6)
- EER: 3.41
- COP: 3.77
- Cooling Residential kW (Hot / Average / Cold): 5.56 / 5.284 / 5.716
- Heating Residential kW (Hot / Average / Cold): 5.55 / 4.534 / 3.841
- Running Current amps (Cooling / Heating): 11 / 10.6
- Moisture Removal l/hr: 4.4
- Indoor Sound Pressure Cooling dBA (High / Quiet): 51 / 32
- Indoor Sound Pressure Heating dBA (High / Quiet): 48 / 32
- Outdoor Sound Pressure dBA (Cooling / Heating): 53 / 55
- Outdoor Sound Power dBA: 65
- Air Circulation (Indoor – High Fan) Cooling l/sec: 381
- Air Circulation (Indoor – High Fan) Heating l/sec: 350
- Indoor Unit Dimensions mm (Height x Width x Depth): 340 x 1150 x 280
- Indoor Unit Weight kg: 16.50
- Outdoor Unit Dimensions mm (Height x Width x Depth): 788 x 940 x 320
- Outdoor Unit Weight kg: 53.00
- Piping Connects mm Ø (Liquid / Gas): 9.52 / 15.88
- Pipe Length m (Max (Precharged)): 50 (20)
- Max Height Difference m: 30
- Operation Range Cooling °CDB (Min to Max): -10 to 50
- Operation Range Heating °CDB (Min to Max): -15 to 24
- Refrigerant Type: R32
