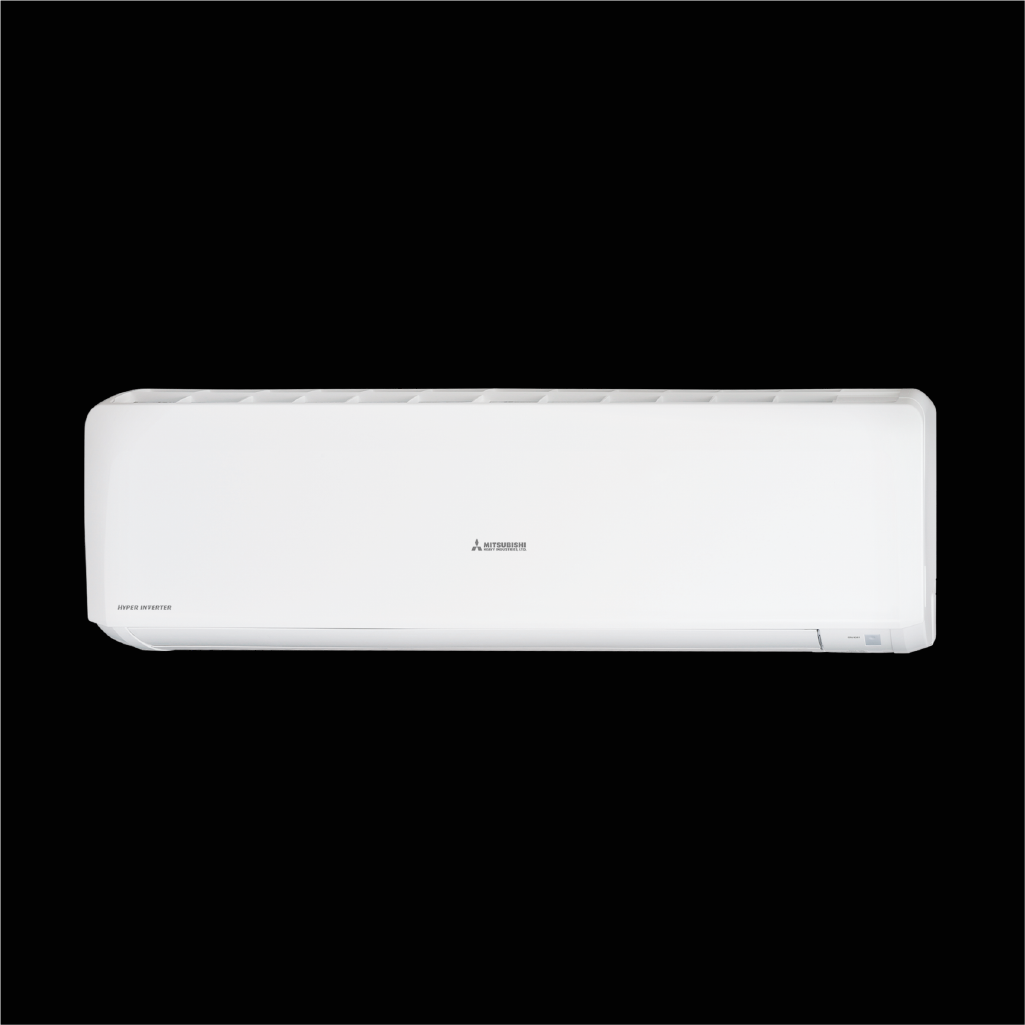

Mitsubishi Heavy Industries Bronte 8kW Inverter Wall Split System Air Conditioner
Specifications
- Indoor Unit Model: DXK28ZRA-WF1
- Outdoor Unit Model: DXC28ZRA-W
- Power Supply: 1-Phase, 240V, 50Hz
- Cooling Capacity (T1): 8.0 (2.3 – 9.5)
- Heating Capacity (H1): 9.0 (2.1 – 11.2)
- Heating Capacity (H2): 8.2
- Power Consumption Cooling: 2.22 (0.48 – 3.1)
- Power Consumption Heating: 2.40 (0.40 – 3.40)
- Maximum Power Consumption: 3.65
- Running Current (A) Cooling: 9.4
- Running Current (A) Heating: 10.2
- Inrush / Maximum Current: 10.2 / 17.0
- EER: 3.60
- COP: 3.75
- Sound Power Level (Outdoor): 68 dB(A)
- Sound Pressure Level (Indoor – JIS C9612): 46 / 43 / 38 / 25 dB(A)
- Sound Pressure Level (Outdoor): 56 dB(A)
- Indoor Unit Dimensions: 339 × 1197 × 262 mm
- Outdoor Unit Dimensions: 750 × 880 (+88) × 340 mm
- Indoor Weight: 15.5 kg
- Outdoor Weight: 58 kg
- Airflow Cooling (Indoor): 383 / 345 / 300 / 182
- Airflow Heating (Indoor): 450 / 363 / 315 / 234
- Refrigerant: Type: R32 (1.6 kg)
- Pre-charged Pipe Length: 15 m
- Liquid Line: Ø 6.35 mm
- Gas Line: Ø 15.88 mm
- Maximum Pipe Length (One Way): 30 m
