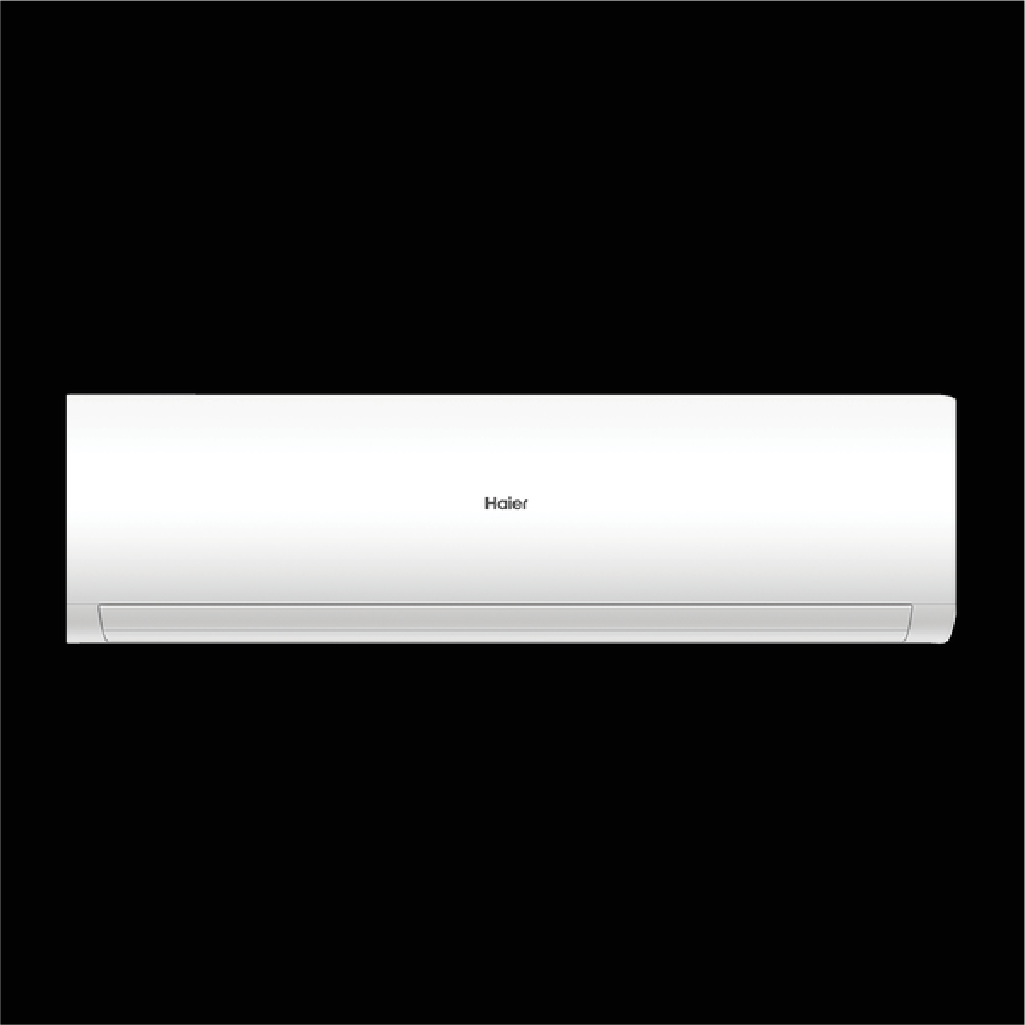

Haier 8kW Inverter Wall Split System Air Conditioner
Specifications
- Indoor unit model: AS80QFFHRA
- Outdoor unit model: 1U80QAFFRA
- Cooling capacity (kW): 8kW
- Heating capacity (kW): 9kW
- COP: 3.93
- EER: 3.81
- Energy rating (cooling): 8.00
- Energy rating (heating): 9.00
- HSPF-RES (Hot/Average/Cold): 5.271/4.550/3.873
- HSPFCOM (Hot/Average/Cold): 5.289/4.854/4.258
- TCSPF-COM (Hot/Average/Cold): 5.749/5.921/6.364
- TCSPF-RES (Hot/Average/Cold): 5.367/5.084/5.341
- Indoor unit depth: 275mm
- Indoor unit height: 365mm
- Indoor unit width: 1316mm
- Outdoor unit depth: 370mm
- Outdoor unit height: 815mm
- Outdoor unit width: 950mm
- Indoor unit weight: 21kg
- Outdoor unit weight: 52kg
- Pipe length maximum: 25m
- Pipe size gas: 15.88 (⅝)
- Pipe size liquid: 6.35 (¼)
- Airflow: 380/332/285/230
- Indoor sound pressure SPL: 48-30dBA
- Outdoor sound power SWL: 70dBA
- Outdoor sound pressure SPL: 57dBA
- Refrigerant: R32
- Working temperature cooling: -10°C to +46°C
- Working temperature heating: -15°C to +24°C
- Minimum circuit amps: 16.5MCA
- Power phase: Single phase
- Power supply: 1/220-240/50
- Supply frequency: 50Hz
- Supply voltage: 220-240V
