Haier 3.5kW Inverter Wall Split System Air Conditioner

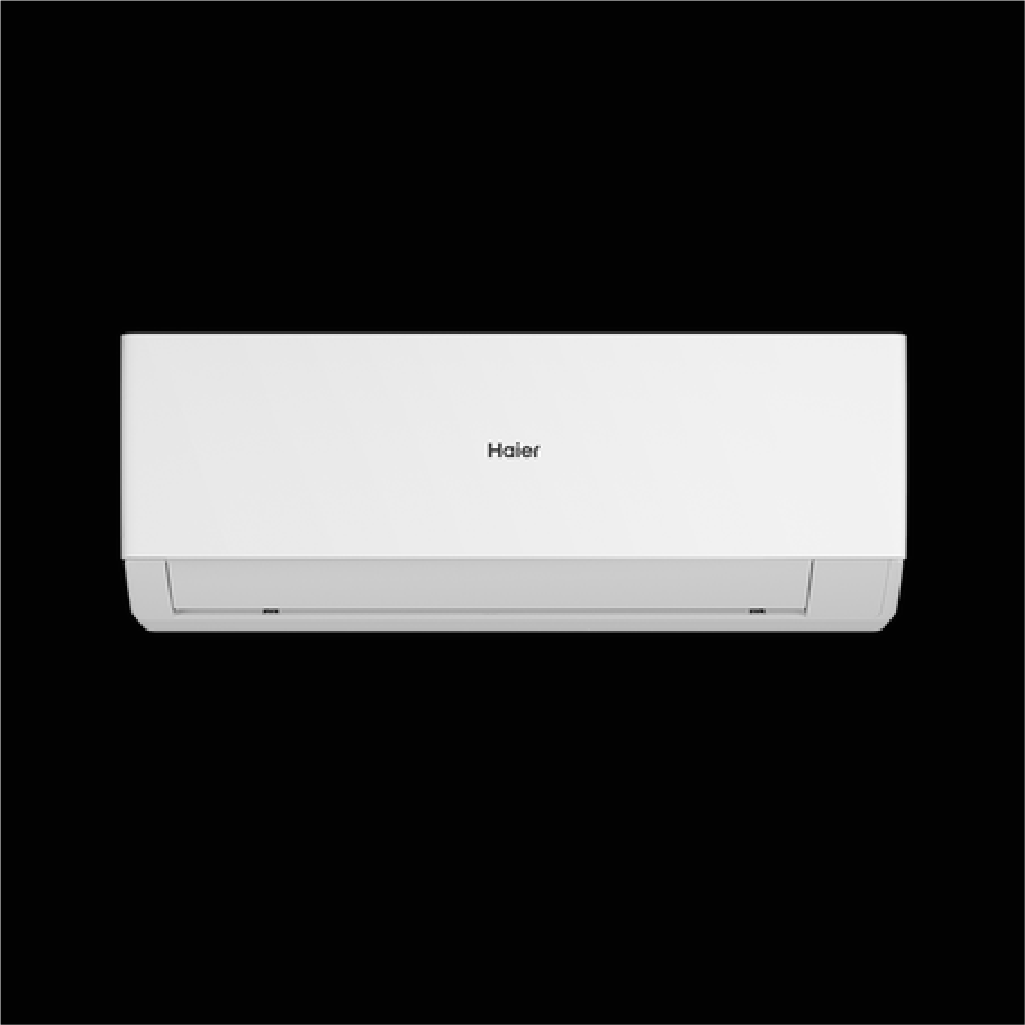

Front view of a sleek, white Haier wall-mounted air conditioning unit on a black background.
Couple relaxing on wooden platform bed in modern bedroom with dark accent wall, wall-mounted TV, white AC unit.
Modern kitchen and dining area with light wood cabinets, wishbone chairs, wall-mounted white AC unit.
Two couples socializing in contemporary living space featuring coral-colored walls, white air conditioner.
  • Front view of a sleek, white Haier wall-mounted air conditioning unit on a black background.
  • Couple relaxing on wooden platform bed in modern bedroom with dark accent wall, wall-mounted TV, white AC unit.
  • Modern kitchen and dining area with light wood cabinets, wishbone chairs, wall-mounted white AC unit.
  • Two couples socializing in contemporary living space featuring coral-colored walls, white air conditioner.

Haier 3.5kW Inverter Wall Split System Air Conditioner

Specifications
  • Indoor unit model: AS35QCFHRA
  • Outdoor unit model: 1U35MAFFRA
  • Cooling capacity (kW): 3.5kW
  • Heating capacity (kW): 3.7kW
  • COP: 4.64
  • EER: 0.51
  • Energy rating (cooling): 3.50
  • Energy rating (heating): 3.70
  • HSPF-RES (Hot/Average/Cold): 5.309/4.806/4.292
  • HSPFCOM (Hot/Average/Cold): 5.310/5.005/4.559
  • TCSPF-COM (Hot/Average/Cold): 8.076/8.772/11.843
  • TCSPF-RES (Hot/Average/Cold): 6.620/6.073/6.329
  • Indoor unit depth: 217mm
  • Indoor unit height: 307mm
  • Indoor unit width: 875mm
  • Outdoor unit depth: 275mm
  • Outdoor unit height: 553mm
  • Outdoor unit width: 800mm
  • Indoor unit weight: 10kg
  • Outdoor unit weight: 30kg
  • Pipe length maximum: 15m
  • Pipe size gas: 9.52mm
  • Pipe size liquid: 6.35mm
  • Airflow: 210L/S
  • Indoor sound pressure SPL: 40-21dBA
  • Outdoor sound power SWL: 63dBA
  • Outdoor sound pressure SPL: 52dBA
  • Refrigerant: R32
  • Working temperature cooling: -10°C to 46°C
  • Working temperature heating: -15°C to 24°C
  • Supply frequency: 50Hz
  • Supply voltage: 220-240V
Get A Quote
  • More Efficient Heating
  • Even Airflow
  • Turbo Cooling
  • Easy Installation
  • UV Protect
  • Coanda Plus Airflow
  • Self-Clean
  • Wi-Fi
  Datasheet
