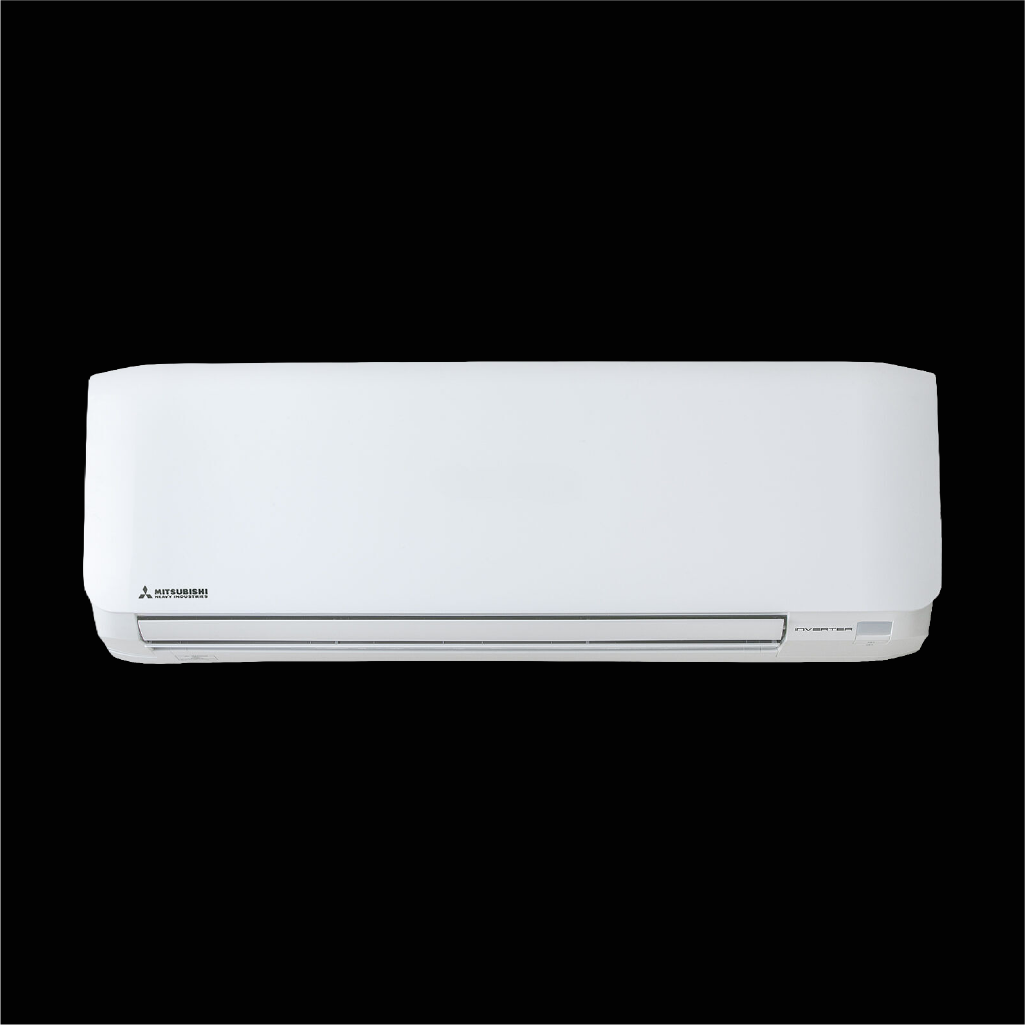

Mitsubishi Heavy Industries Avanti 2kW Inverter Wall Split System Air Conditioner
Specifications
- INDOOR UNIT: DXK06ZSA-WF1
- OUTDOOR UNIT: DXC06ZSA-W
- Power Source: 1 Phase 220–240V, 50Hz
- Capacity (kW) - Cooling (T1): 2.0 (0.9–3.0)
- Capacity (kW) - Heating (H1): 2.7 (1.0–4.2)
- Capacity (kW) - Heating (H2): 3.2
- Maximum Power Consumption: 1.65kW
- Power Consumption (kW) - Cooling: 0.41 (0.18–0.81)
- Power Consumption (kW) - Heating: 0.56 (0.20–1.12)
- Running Current (A) - Cooling: 2.1
- Running Current (A) - Heating: 2.7
- EER: 4.88
- COP: 4.82
- Sound Pressure Level (dB(A)) - Outdoor: 56
- Sound Pressure Level (dB(A)) - Indoor: 35–27–22–19
- Dimensions (H×W×D - Indoor): 290 × 870 × 230 mm
- Dimensions (H×W×D - Outdoor): 540 × 780 (+62) × 290 mm
- Net Weight (Indoor): 9.5 kg
- Net Weight (Outdoor): 33 kg
- Airflow (l/s) (Cooling - Indoor): 165–127–93–83
- Airflow (l/s) (Heating - Indoor): 190–142–108–93
- Refrigerant: R32 (0.58 kg)
- Pipe Size (Liquid): 6.35 mm
- Pipe Size (Gas): 9.52 mm
- Max Pipe Length: 20 m
